VLMP 2 STLs, BOM and Assembly Guide
VLMP 2 STLs, BOM and Assembly Guide

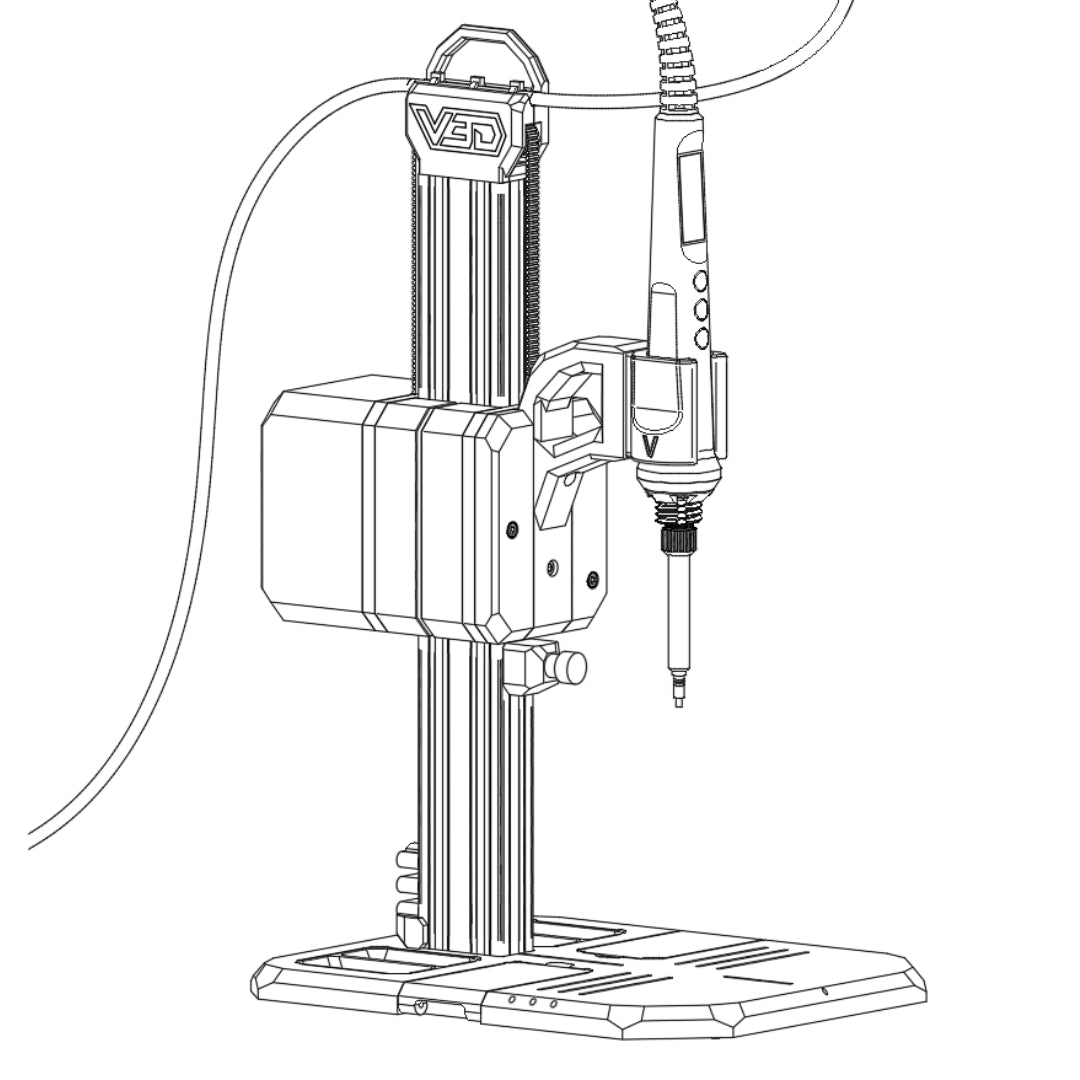

A set of 3D digital files that can be 3D printed to make the Vector 3D VLMP 2 heat set insert press. This includes a customisable file for the grip, a list of parts you need to acquire to assemble (BOM), and a high quality step-by-step assembly manual.
BOM
For those considering self sourcing, but don't want to risk having to buy the hardware kit after this, most parts of this kit are fairly easy to source, you may have to buy more than you need though which is quite typical for self sourcing.
The only 'difficult' parts to source are 300mm 2040 v-slot extrusion with both ends tapped for M5, and the M8x38x1.5mm washers. Thicker washes are ok, and so are slightly smaller M8 washers, although if they are too small they won't provide enough weight. The rest of the BOM you shouldn't have too much trouble sourcing.
Printing Instructions
You can print from any material for most of the design, you just need to make sure the grip is printed from ABS or ASA. The grip is quite small and can be done with a brim so should be achievable on many printers.
I suggest 3 perimeters and 4 top/bottom layers, with 20% infill. For the base, be sure to add supports for the bridge sections.
You get the Autodesk fusion CAD file (and common STLs) for the grip with your purchase as the grip itself is an open source design. We also have a database that stores common sizes for various soldering iron models so you can make it yourself in just the right size.
Once you have a good grip size for your iron, be sure to share it to our database to help others too by filling in this form.
More info
More info
Downloads
Downloads
Assembly Video
Share
I had a good time assembling the VLMP 2. I had a bit of trouble clearing the ducts for the alignment lines, where you slide coloured filament pieces. I also had trouble with the eccentric nuts, ordered in a third party shop: they were too thick so the wheels didn't get into the rails and I had to file them.
At the time of order the hardware set was out of stock, so I had to shop around the BOM.
I would highly recommend getting te harware package: it will save you time and money.
Thank you Adam!
I used it last night to install about 50 3mm inserts, worked awesome! Thank you!
