Pine64

PINECIL – Smart Mini Portable Soldering Iron (Version 2)

PINECIL – Smart Mini Portable Soldering Iron (Version 2)

£35.50
£35.50
Sale Sold out
Taxes included.

In stock

Description

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 6 seconds!

  • Dual power input design: 1) USB-C supports both PD and QC 3.0 and; 2) DC5525 barrel DC jack.
  • Speedy Rapid Warmup: Reaches operating temperature in 6 seconds. Support for on-demand rapid boost feature.
  • Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.
  • Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.
  • Auto standby mode engages when it is not in use ensuring the user safety.

More info

PACKAGE
  • Dimensions: 15cm x 9cm x 2.2cm
  • Weight: 80 grams
BODY

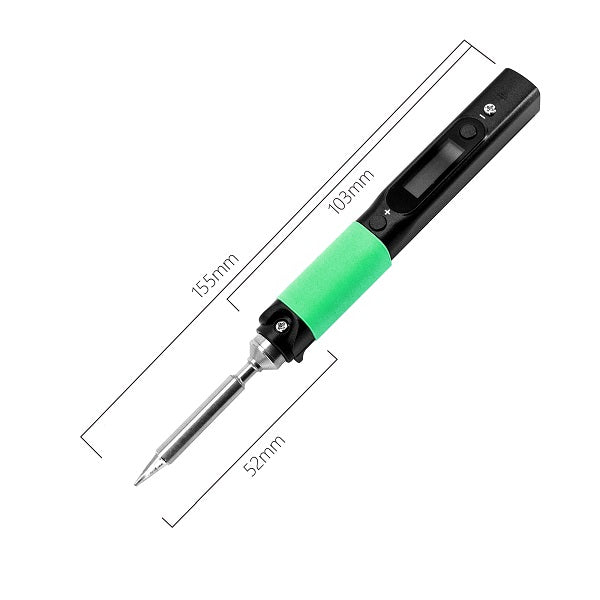

  • Dimensions:  155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm
  • Weight: 28g with solder tip / 18g without solder tip
  • Build:  Plastic with metal clip (Handle)
  • Color: Black (case)/ Green (Sleeve)
PLATFORM
  • OS: Ralim’s IronOS build
  • Chipset: Bouffalo BL-706
  • CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz
DISPLAY
  • Type: OLED White Colour Monochrome Display
  • Size: 0.69 inches
  • Resolution: 96x16pixels
MEMORY
  • Internal Flash Memory: 192KB
  • System Memory: 132KB SRAM
  • Expansion: None

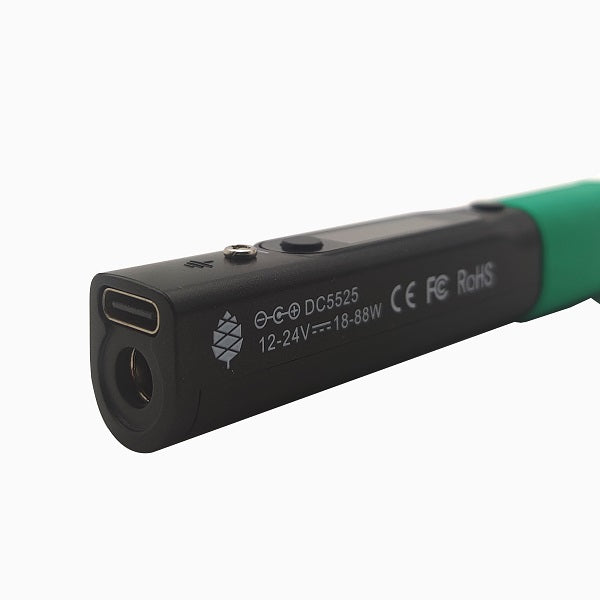

POWER PORTS
  • USB type C: PD and QC 3.0 12V-20V 3A
  • Barrel Jack: DC5525, 12V-24V DC 3A

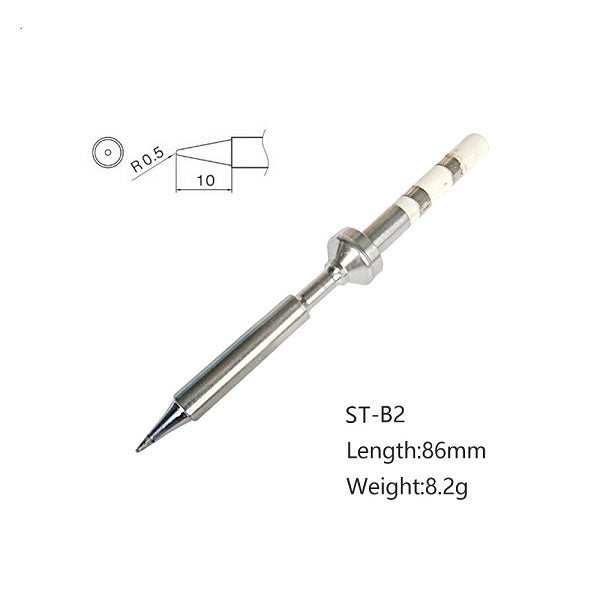

TIP
  • Type B2
  • Length: 86mm
  • Weight: 8.2g
FEATURES
  • Capable received power from either USB-C port or barrel jack.
  • GPIO break-out thru USB-C port
CERTIFICATION
  • FCC
  • CE RED
  • ROHS

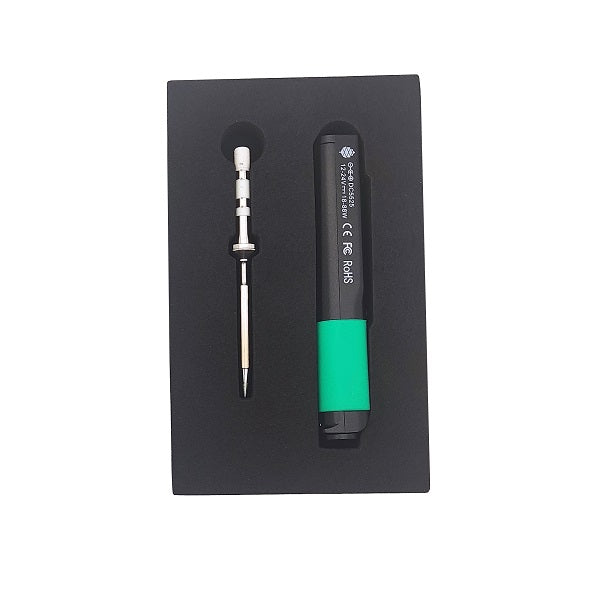

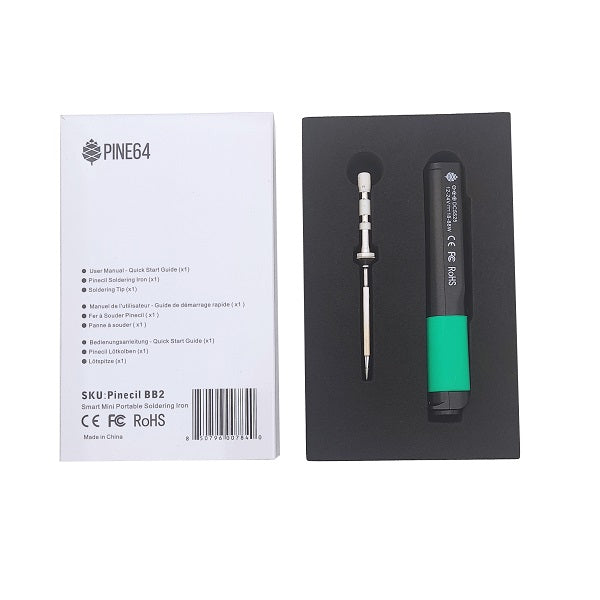

PACKAGE CONTENTS
  • Pinecil Soldering Iron version 2
  • ST (Short Tip)-B2 Soldering Tip

Downloads

View full details

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Robert B.
Great little iron

A brief review based on a quick use. It heats up really fast and copes well with smaller soldering jobs. This is what I bought it for plus to mount in the VLMP I plan to build for setting heat inserts.

J
Joseph M.
Seriously Impressed with this little soldering Iron

I love this thing, heats up super fast, very accurate and fast tempreature readout, USB C powered.

It seems to perform about the same or slightly better than my Hakko 888D.

One minor issue so far is the ergoonmics aren't amazing so if you using it for a long time you might get some RSI or cramp issues. I bet you could 3d print a better handle for it though.

Also the interface is a little annoying to naviagte, but manageable.

For the price, I'm impressed. Particularly if you already have a high enough wattage USB PD power supply, it needs a 65 watts (make sure that's 65 watts for one port, some of the cheaper ones are labelled 65w but that's a total power for all the ports, not just one port.)
