Vector 3D

Daybreak LED

Daybreak LED

£1.60
£5.90 £1.60
Sale Sold out
Taxes included.
Colour
Length

In stock

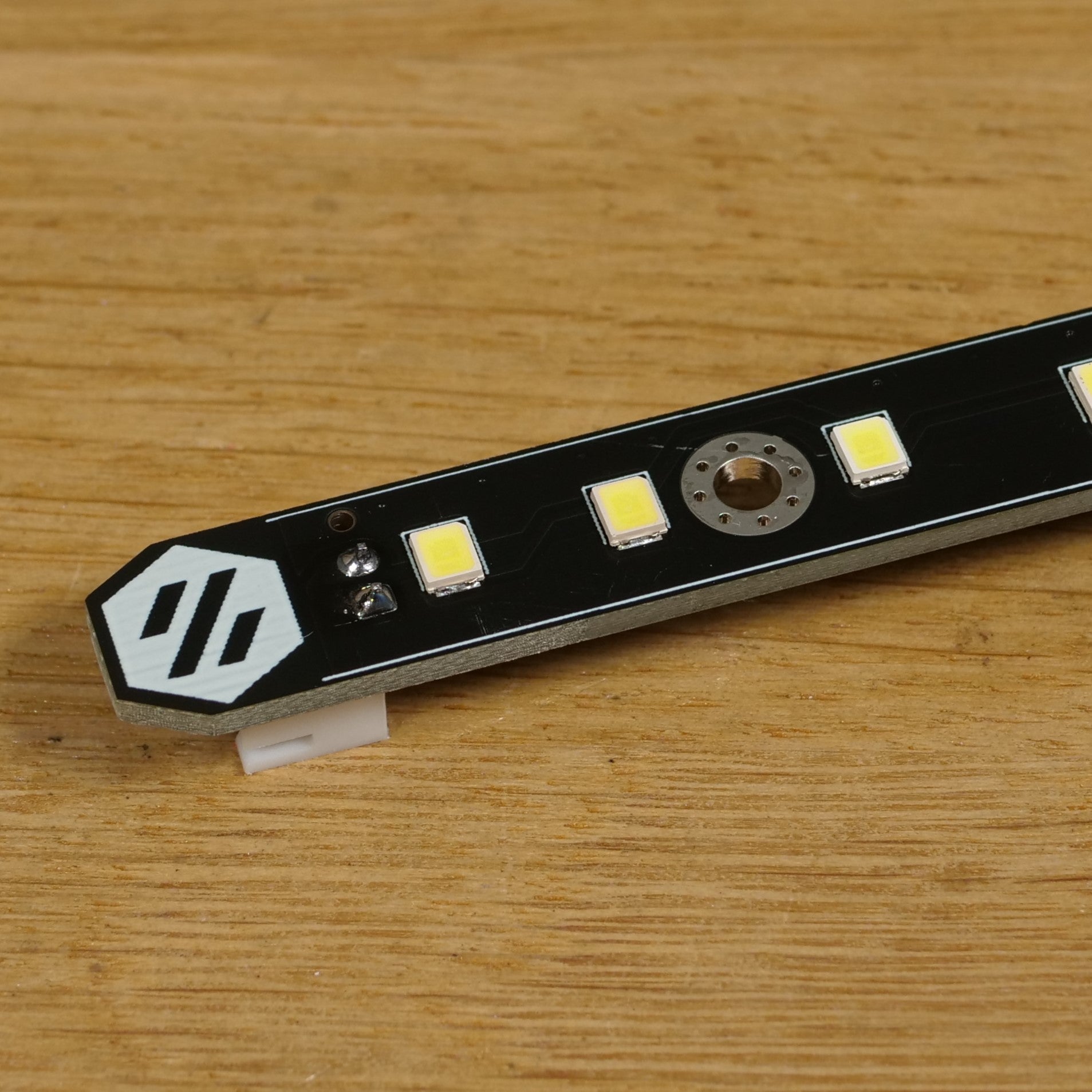

Daybreak is a chainable PCB LED bar used to illuminate your 3D printer. Connectors are located at both ends of the PCB so you can chain bars together. Daybreak is based on the design of 'Daylight on a stick' by Blamm. One Daybreak PCB, assembled with JST XH headers at both ends.

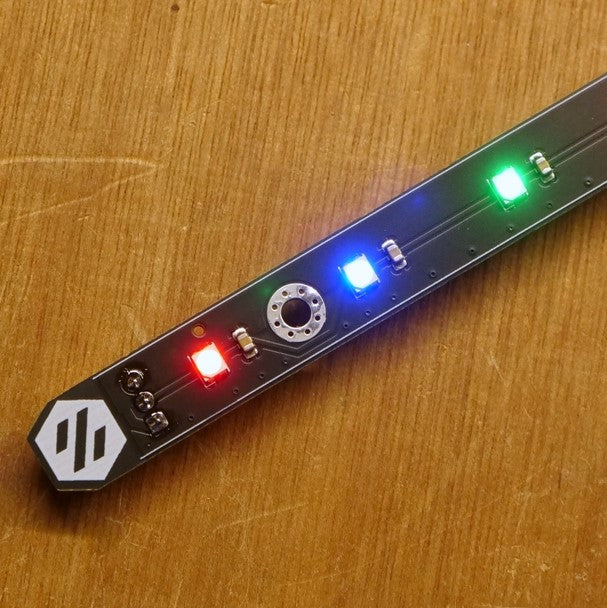

 Daybreak Daybreak Mini Daybreak Neo Daybreak Neo Mini
Voltage 24V 24V 5V 5V
Power 5W 3.4W tbc tbc
Width 11mm 11mm 11mm 11mm
Length 270mm 170mm 270mm 170mm
Colour 6000K~6500K  6000K~6500K  Any Any
Operating Temperature -30C to +85C -30C to +85C -40 to +80C -40 to +80C



    More info

    Implementation

    These are designed to fit Voron 3D printers and will fit in all sizes of the Voron 2.4, trident and zero.

    Since these are high-power LEDs they can produce a lot of heat. I've found that 50% PWM still provides a lot of light and keeps the temperature increase to about 16C. Raising the brightness for short periods such as time-lapse photos would be fine but long periods of operation over the rated temperature will significantly shorten their life. Aim to keep them below 80C.

    Open Source Info

    The original version of the Voron Daylight PCB: Github-Voron-Daylight

    Downloads

    Downloads

    3D and STL

    Mounts for 2.4 and Trident

    Mounts for v0

    Anti-Glare Baffles

    View full details

    Customer Reviews

    Based on 5 reviews
    100%
    (5)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    D
    Darren F.
    These are really good for the Voron 0

    These are really good for the Voron 0 but I wish there was a bit more information readily available for configuring in Klipper. The V3D GitHub site for all of the strips, whether they are the RGB Neo versions or not, are copy-pasted from the 24V Voron 2.4 Daybreak strips. For a start, these are 5V. I think RGBW LEDs would have been more versatile, but ultimately they are great for the price and provide fairly decent illumination of the print bed with the possibility of using macros to change the colour for various tasks.
    One benefit of the Picobilical (at least the LDO version) is that the board provides 2 headers for LED strips, which makes installation a lot easier but the option of daisy chaining is provided for single headers.

    M
    Mark N.
    Super-fast delivery

    Super-fast delivery, easy to install, and look great in my Voron 2.4 R2 350!

    R
    Richard
    Super fast delivery

    Super fast delivery, great comms from Adam. Thanks

    A
    Albert K.
    Quality is top notch

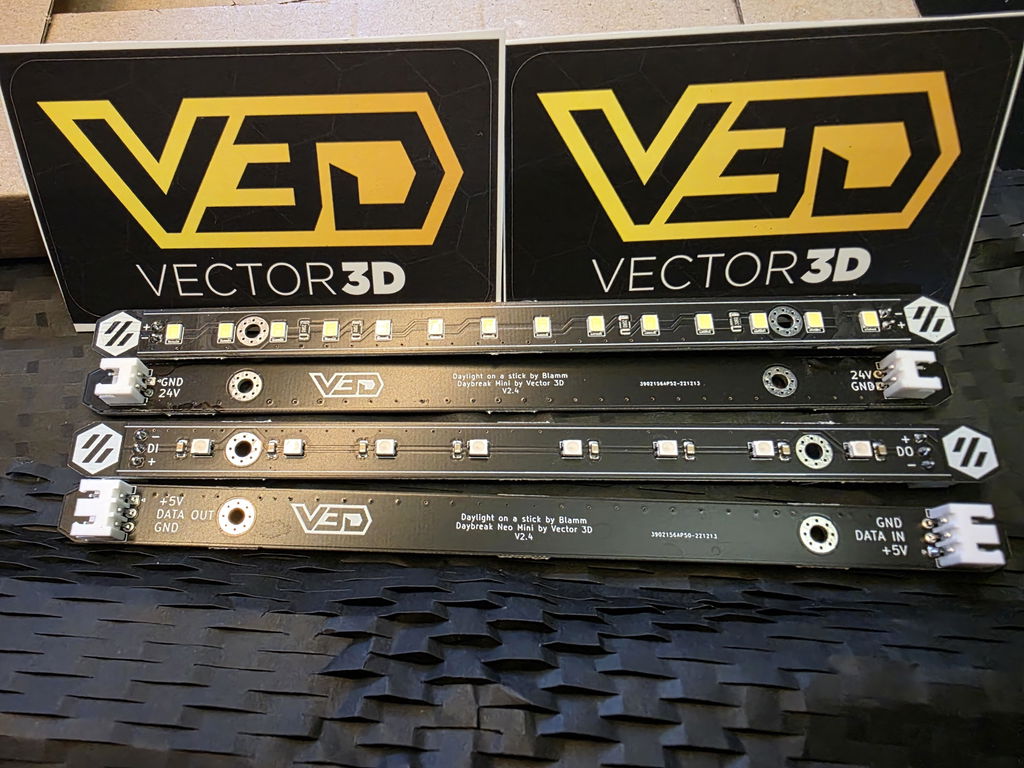

    Exactly the same experience as with the Neo variant I also ordered from Vector3D:
    Quality is top notch, the shipping was fast (considering that it was UK to Germany)!
    Recommended!

    A
    Albert K.
    Quality is top notch

    Quality is top notch, the shipping was fast (considering that it was UK to Germany)!
    Recommended!
