VLMP 2 Gewindeeinsatz-Einpresswerkzeug Hardware-Kit

Very good kit, very well designed, its working well in New Zealand.

Fun to build and inspiring to see how great design works.

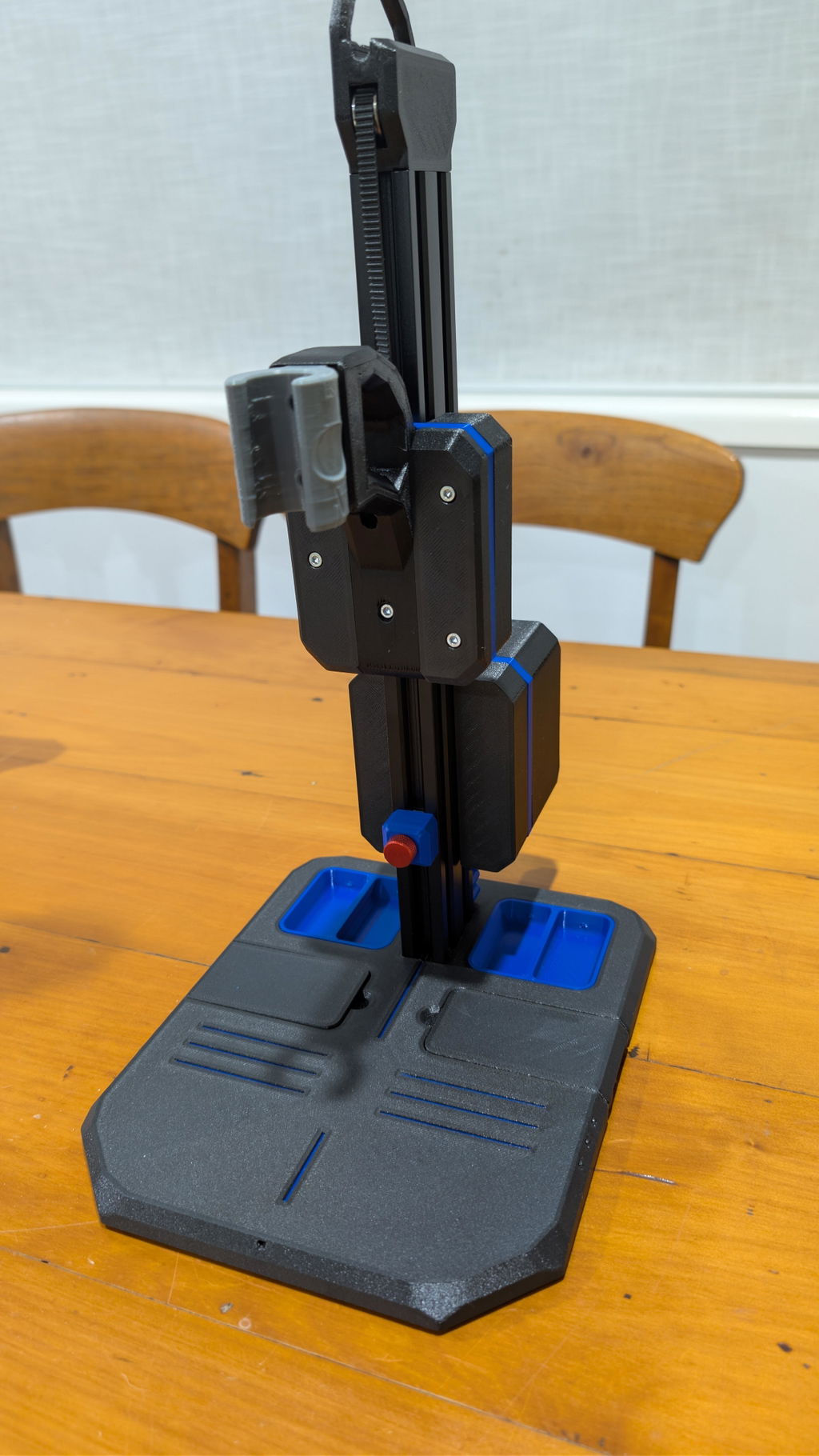

I bought the hardware kit, which provides a link to print the STLs. I had the plastic parts printed and waiting when the hardware arrived. The main parts I printed with Polymaker PETG-CF, highlight colour parts eSun PLA+ blue, and the iron grip DREMC grey ASA.
My iron is a Hakko 888D and despite the taper being the opposite way to most, the grip holds onto the silicone handle well and I've been pleased with the first few times I've used the press.
The design is tremendously well thought out, the instructions clear, and all the parts arranged so it was a delight to build.
When I did have questions Adam was available on discord providing guidance and rapid support to ensure it was complete the same night.
Overall this is brilliant - thanks!

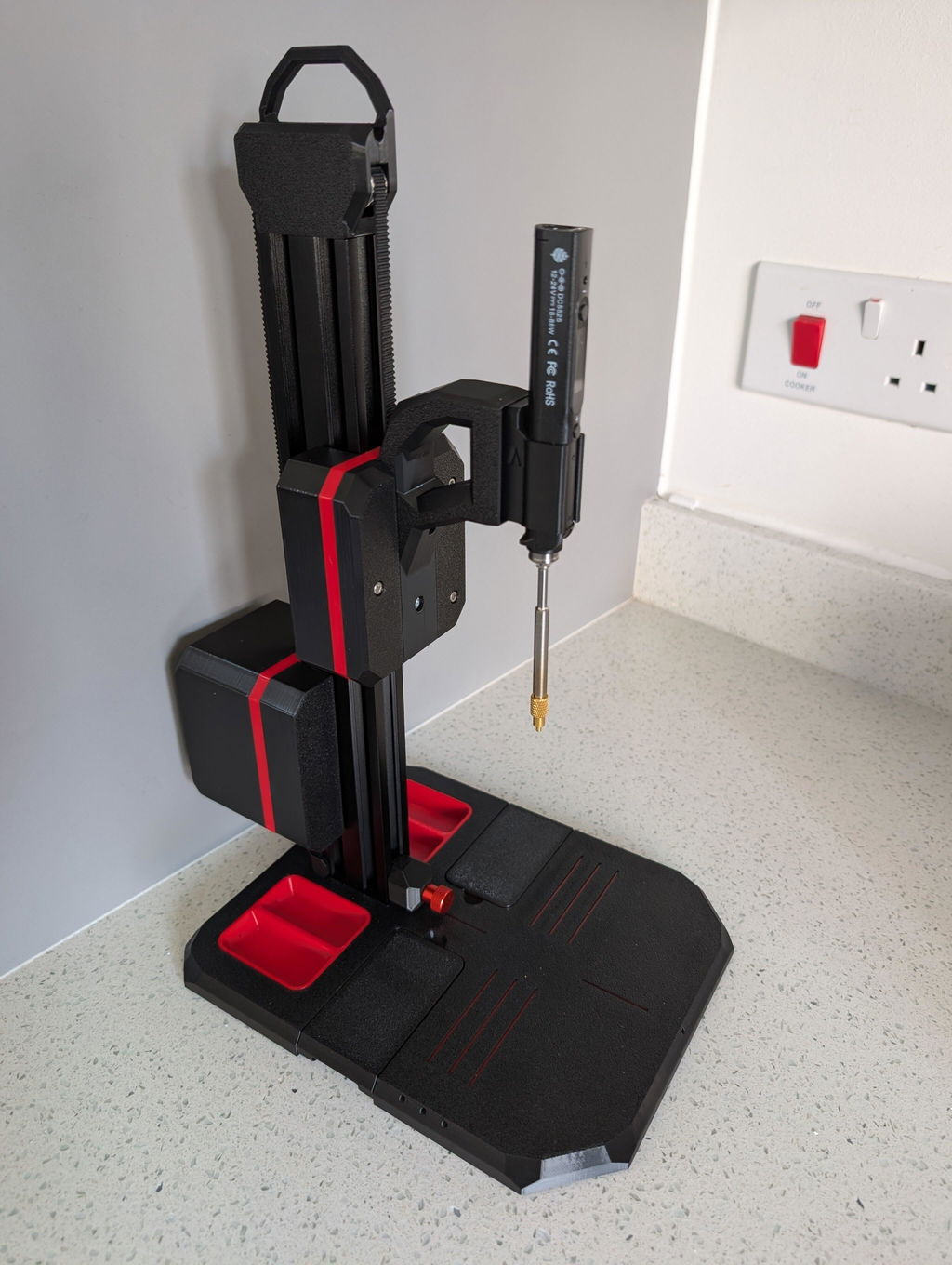

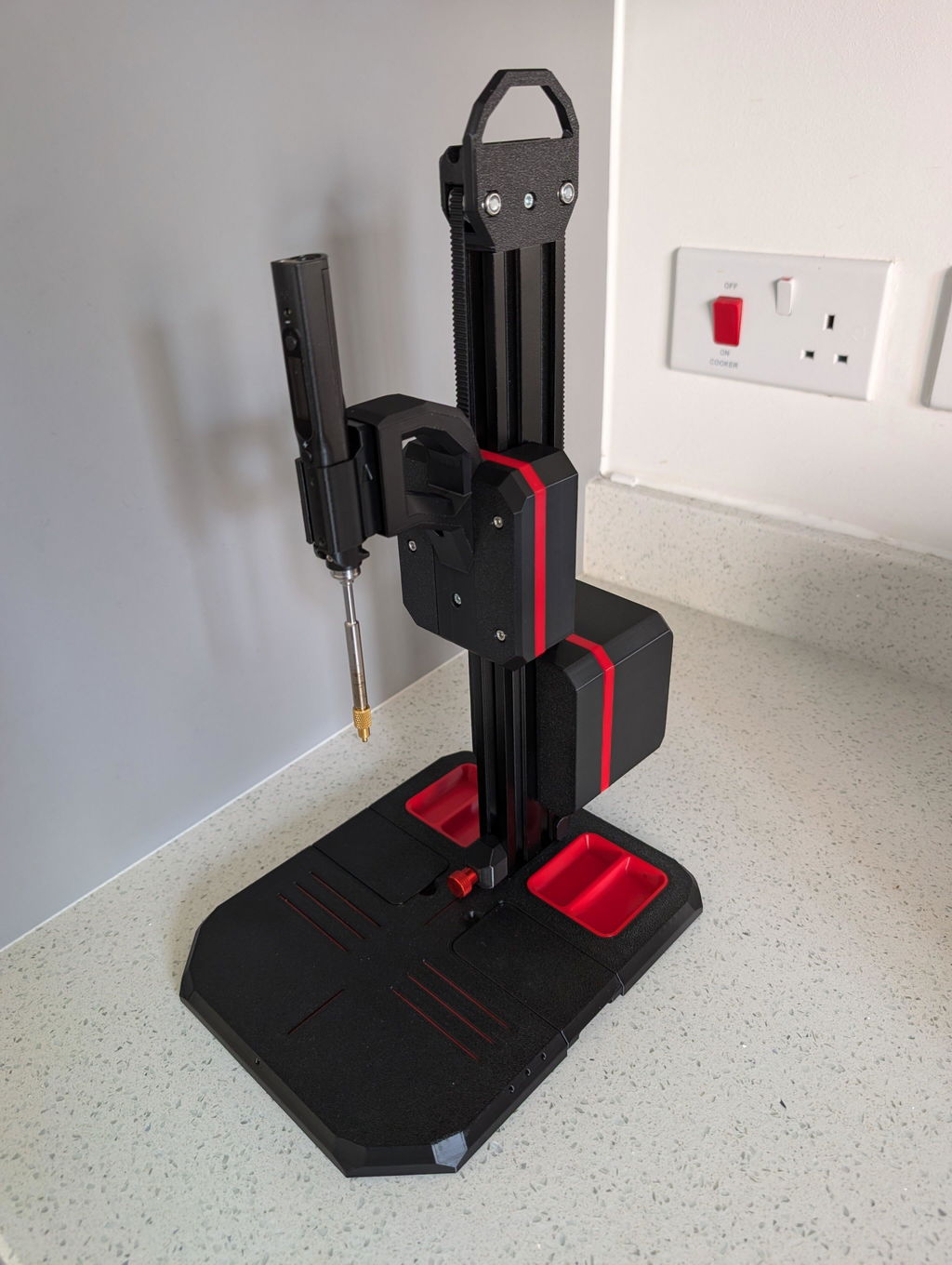

Very nicely packaged kit, all parts in nice well labelled zip locked bags, followed the video on youtube at half speed although the pdf manual is brilliant. On my setup I used a Pinecil V2 iron with Heat Insert Adapter.

Printed all parts at 35% infill, NO SUPPORTS, I used PETG for the carriage parts, ASA for the soldering Iron Holder and PLA Plus for the other bits. All parts printed on Bambulab A1 and A1 mini.

Tip with the filament when fixing the trays and door in place, cut the end of the filament at an angle and use pliers to push the filament through the holes, pull back the filament a little and cut it so its slightly shorter, you can then push the filament inside the hole so that it cant be seen.

For STL files you get a link to download them from the supplier, however my link went to SPAM folder so check your spam folder if you dont get the link after purchase.

Make sure that you spend time balancing the unit, you need to make sure it goes back up smoothly and slowly, check my video out, make sure you fit the iron and the power cable before balancing and remember when checking balance to loosely fir the cover and screws as they affect the balance.

My Iron is a Pinecil V2 I achieved balance by omitting 7 of the washers from the counterbalance.

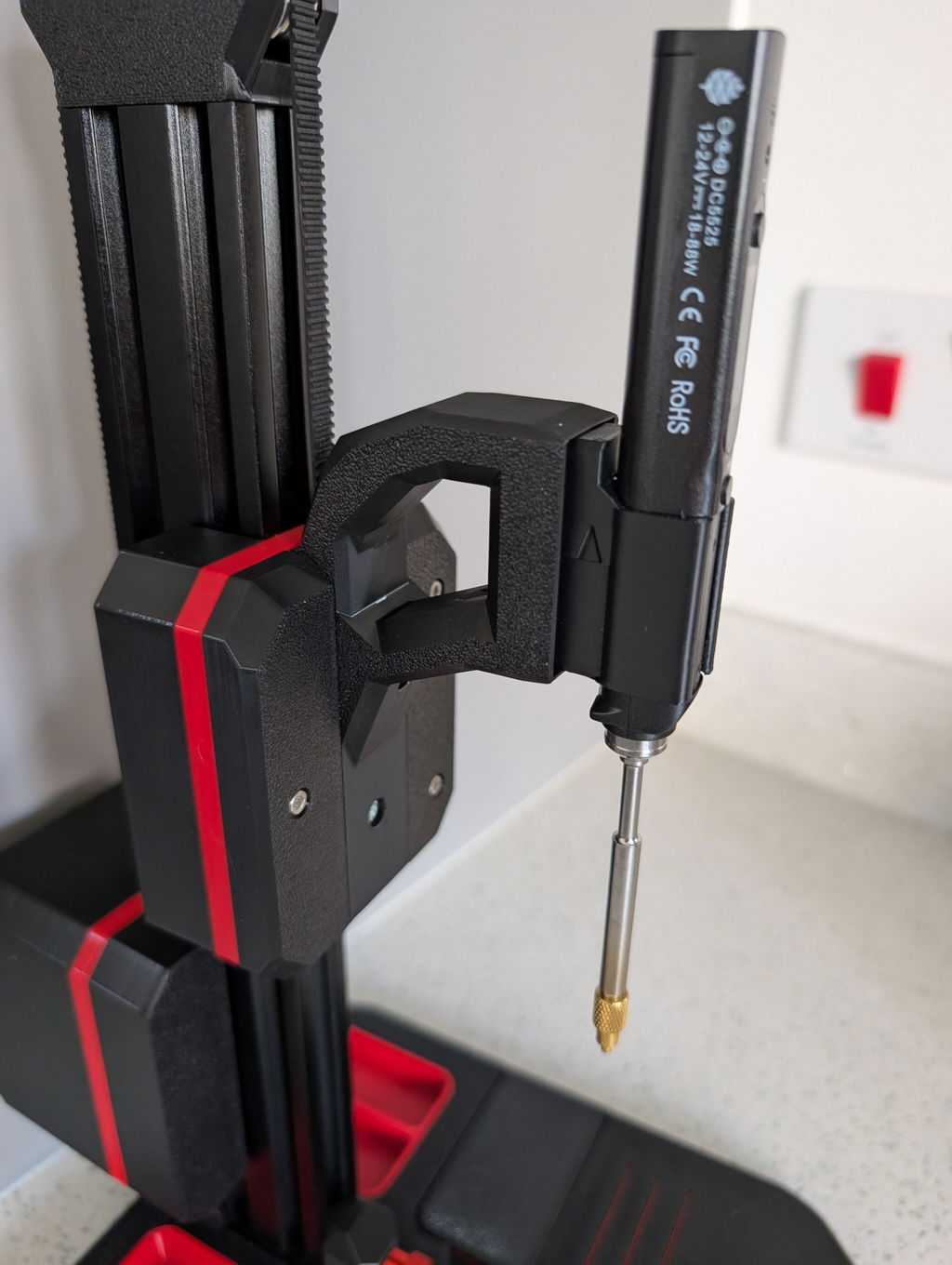

To fit the Pinecil you need to remove the green rubber sleeve from the iron and push the iron in to the clip rather than slide it in, I printed the Grip in ASA to help with the heat deformation although PETG might be ok.

Its also worth adjusting both adjustable carriage wheels to make sure that the carriages dont wobble and run smoothly up and down, it doesnt need to be too tight though.

Only slight criticism is that the supplied rubber feet are a lot smaller than the recessed hole they sit in, would have been better to have the holes recessed slightly more and the rubber feet be a snug fit this would really help the feet stay fixed and is a simple mod.

Overall once setup properly its a lovely piece of kit to use, I use it for a professional manufacturing process and its been flawless so far, highly recommend it.

Link To Video

https://drive.google.com/file/d/1MkE63K2gF1seyFAsDTHvgOkTZ5gFGh6b/view?usp=sharing

Nice tool but nice to print myself the parts!
Sent Harware kit is great and instructions are clear.
